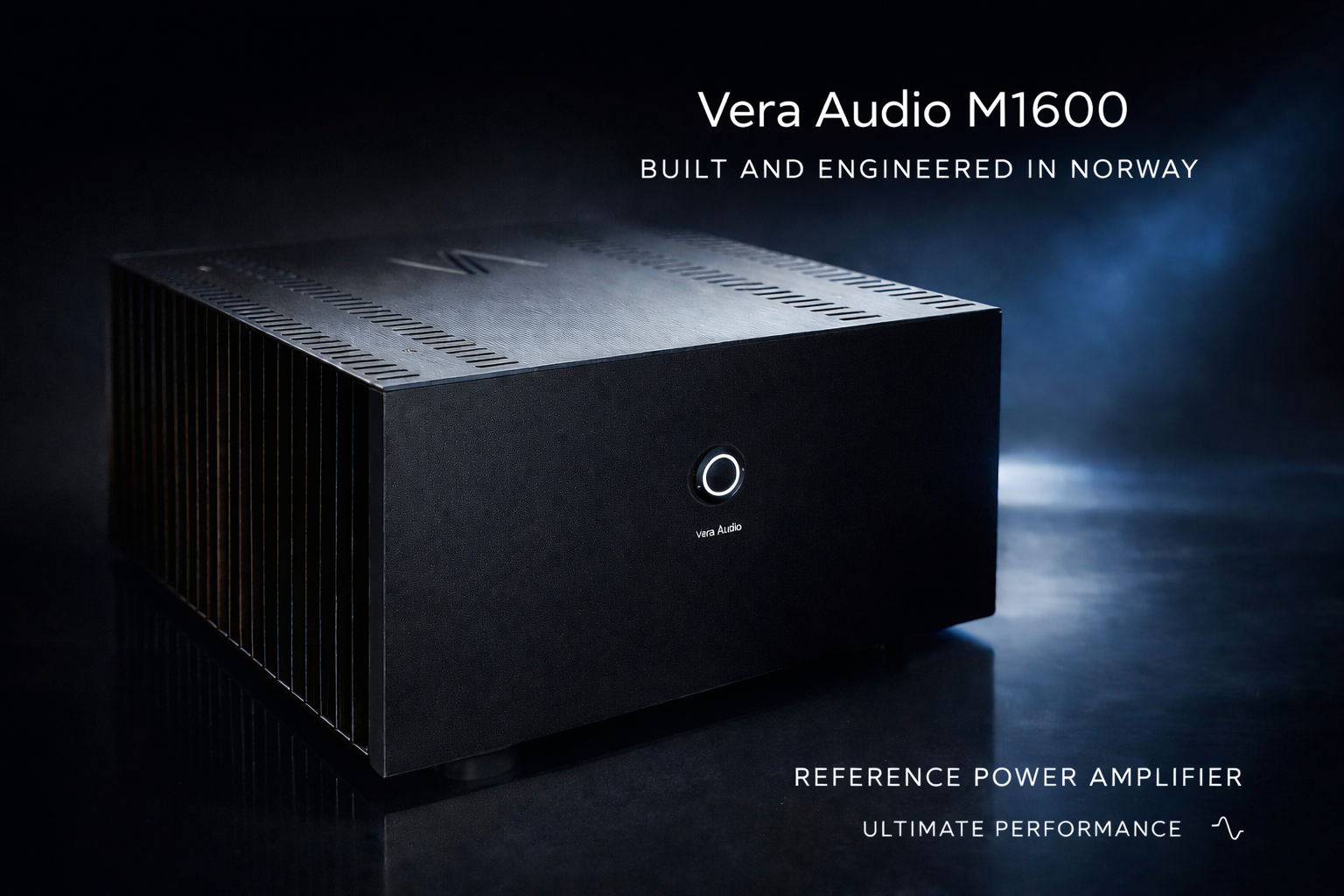

Vera Audio M1600

Mono block with 1600W in 8 Ohm, 2500W in 4 Ohm and 2000W in 2 Ohm.

Black finish.

Price:
23 600 NOK ex VAT (outside Norway)
29 500 NOK Incl. VAT (Norway)

The amount in NOK to your local currency can be googled.

Sold exclusively by lyd & akustikk (sound & acoustics):

Website for Norwegian customers

Website for customers outside of Norway





Category:

Vera Audio M1600 mono block combines huge amount of power with very low distortion. The perfect choice when there is a need for high output power and clean sound reproduction.

In good Vera Audio spirit, cooling has been emphasized. The modules are vertically mounted to large heatsinks, which together with venting holes in top and bottom secures important cooling of critical components making sure the unit will have have a long life span.

The mono block is fully differential/balanced with XLR input and Vera Audio has developed an input stage with superb measuring data.

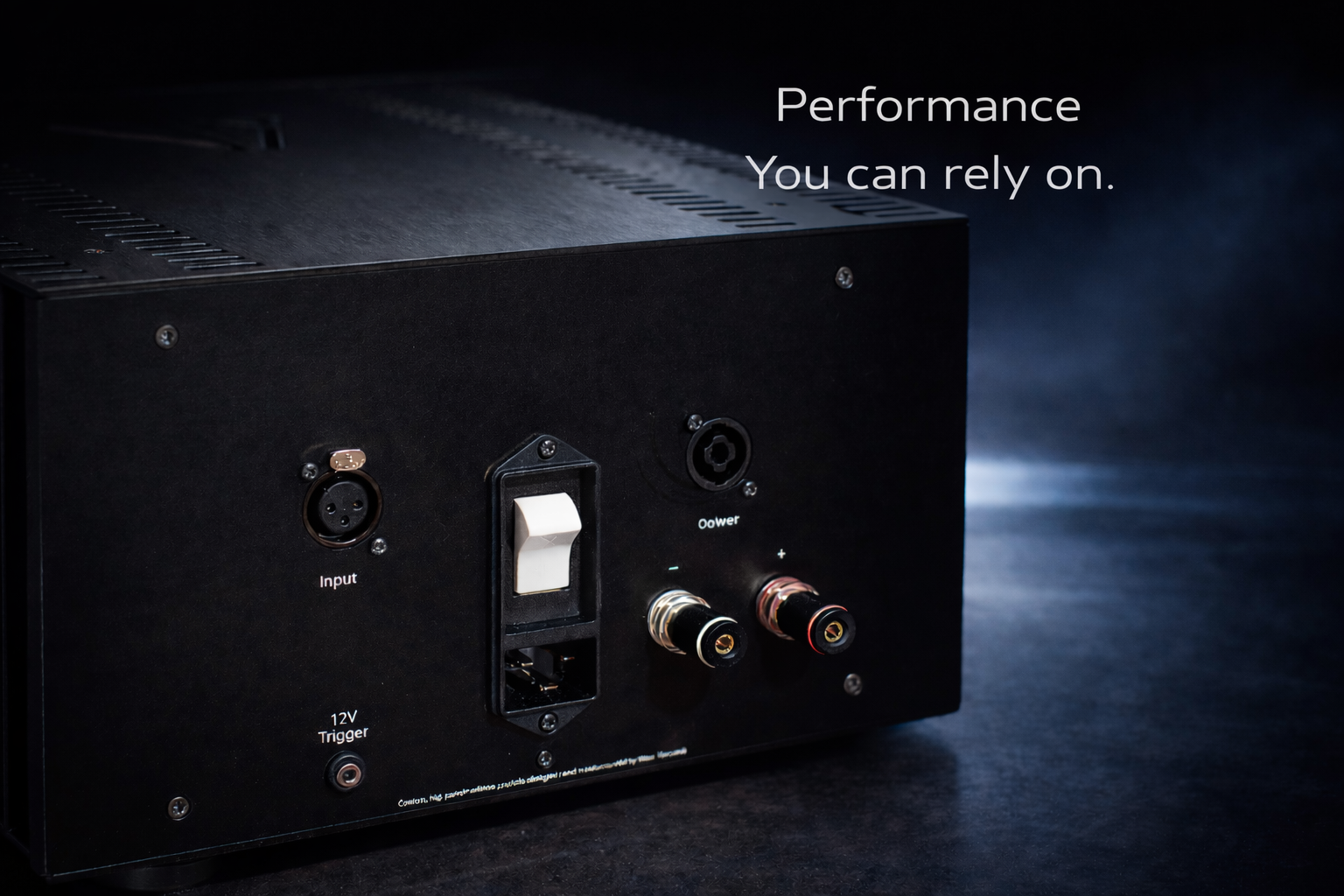

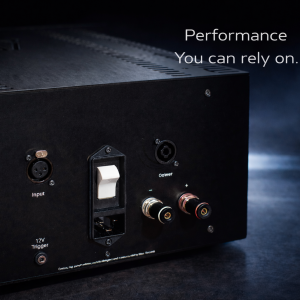

The M1600 has both speaker binding posts and a speakon connection. A 12V trigger input allows the unit to be remotely switched on and off from an auxiliary equipment such as DSP, DAC, pre-amplifier etc.

A main switch is on the rear and a standby button with LED light in front. The LED button is orange in standby and blue light when it’s turned on. Both LED lights are of the comfortable nature.

THD Plus N with 10W in 4 Ohm (22.4KHz BW). M1600 is the orange graph.



Wideband FFT. M1600 is also here the orange graph.



Specifications

– Based on Hypex NC2K module. Compatible with 230V and 120V.

– Stable below 2 Ohm

– Powerful PSU of 3kW which reduces ripple and keeps the amplifier cooler

– Very low distortion

– Vera Audio input stage (buffer) with the great measurable parts

Connections

– Speaker terminals that accepts up to 6mm2 stranded wire, spades and banana plugs

– Neutrik Speakon connector

– Neutrik XLR input

Power rating one channel

1600W in 8 Ohm with 1% THD

2500W in 4 Ohm with 1% THD

2000W in 2 Ohm with % THD



Gain:                                                                          21 dB

Signal-to-noise ratio                                              133 dB

Input impedance:                                                   47k

Output Impedance                                                 3 mΩ f<1kHz
                                                                                   2 mΩ f<20kHz



DIMENSION AND WEIGHT

Width: 32 cm / 12.59”

Depth (including terminals): 35 cm / 13.77”

Height: 18.5 cm / 7.28”

Weight: 10.9 kg / 24.03 lb

Questions and Answers

Note that the M1600 requires a C10 power cord. Such a 1.8m long cable with 3×1.5mm2 follows.

In order to take advantage of the power output the amplifier needs to be connected to a 16A/230V or 25A/110V circuit. A smaller circuit can be used but will limit the amplifiers power output and the circuit may shut down with overloading.
